◤OVERVIEW

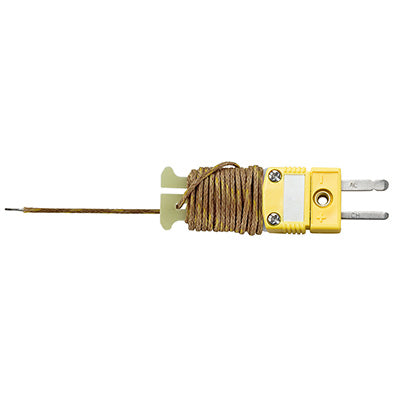

The Type K 6 ft Beaded Thermocouple probe includes 1.8m (6 feet) of insulated 30-AWG wire wound on an integrated spool caddy /sub miniature connector. Color-coded for type K (yellow) thermocouples according to the ANSI standard.
- Insulated 30-AWG wire
- Insulated with glass braid
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
The TC6-K sensor supports the following measurement：Temperature
- Range & Accuracy：
。0 to 285°C (32° to 545°F) – +/- 2.2°C (+/- 4°F) accuracy
。285 to 482°C (545° to 900°F) – +/- 0.75% accuracy
。±data logger accuracy - Insulation：Glass Braid
*Note：Glass braid is rated up to 482°C (900°F) continuous, and 537°C (1000°F) for single exposure.
