EG4115 Core – 15 Input Meter Data Logger – EG4115
EG4115 Core – 15 Input Meter Data Logger – EG4115
EG4115 Core – 15 Input Meter Data Logger – EG4115

EG4115 Core – 15 Input Meter Data Logger – EG4115

$0.00
$0.00

◤OVERVIEW

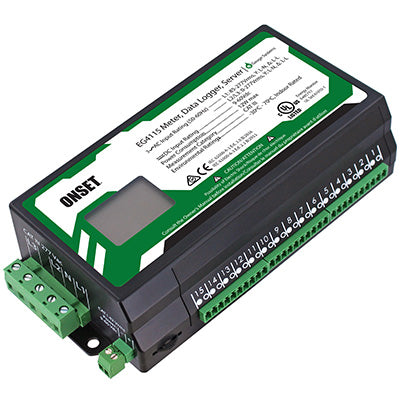

The EG4115 Core is a 15-channel energy meter with 0.5% revenue-grade accuracy compliance and the ability to measure residential or commercial circuit panels, up to 3-phase 277/480VAC and 6900A. The meter has HomePlug AV powerline communication, an Ethernet port, and 2 USB ports for additional options, like WiFi. The embedded web server lets you connect to the interface over the internet or on a local area network. Each unit has a data logger that stores up to 64 data points for the lifetime of the hardware, and you can access data as granular as 1-second averages for the most recent hour of recording. The EG4115 Core is an accurate and flexible solution for monitoring multiple circuits in any residential or commercial energy monitoring application.

  • 15 sensor inputs
  • Supports wide range of current transformers (CTs) to accommodate virtually any size load
  • Built-in web server and graphical monitoring software
  • Custom views and alerts; CSV exports of granular data
  • Fully web-configurable
  • Built-in solid-state memory
  • No service contracts
  • No batteries


In what environment does this data logger operate?

This data logger operates in an indoor environment.

What measurements does this data logger support?

The EG4115 data logger supports the following measurements: AC Current, AC Voltage, Amps (A), Kilowatt Hours (kWh), Kilowatts (kW), Volt-Amp Reactive, Volt-Amp Reactive hour, Watt Hours (Wh) and Watts (W)

Measurement

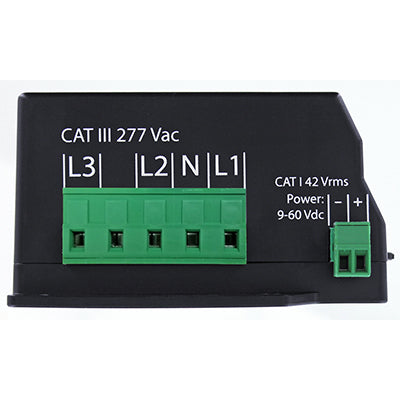

  • AC Voltage：
     。L1: 85-277 Vrms
    。L2: 0-277 Vrms
    。L3: 0-277 Vrms
  • DC Voltage：
    。42 Vrms
    。Power: 9-60 Vdc
    。Measurement: +/-60 Vdc
  • Current：
    。15 channels
    。5-6900A max per channel
    。Fully isolated inputs
  • Frequency：50 or 60 Hz
  • Logging Values：V, A, W, Wh, Hz, VA, VAr, THD, deg
  • Power Draw： 12W max, 2W typical
Environmental
  • Op. Temperature：-30 to 70 deg C (-22 to 158 F)
  • Max Altitude：4000m (13,123ft)
  • Max Humidity：80% up to 31 deg C
  • Meas. Category：Overvoltage Category III
  • Location：Open type indoor device
  • Pollution Degree：2
Data Logger Capacity
  • Register Count：64 (data storage points)
  • Granularity：1 hour/1 second
  • (duration/avg)：
    。1 year/1 minute
    。10 yrs/15 minute
    。Device Lifetime/1 Day
Safety and Regulatory
  • Safety：IEC/UL 61010-1 Ed. 3.0 B:2010
  • CE：
    。IEC 61000-6-1 Ed. 3.0 B:2016
    。IEC 61000-6-3 Ed. 2.1 B:2011
  • FCC：
    。FCC Title 47 CFR Part 15-Subpart B Class B
    。ICES-003 Information Technology Equipment Class B
Communication
  • Homeplug AV：Compatible with Homeplug AV-adapter within ~100ft. on same phase as L1

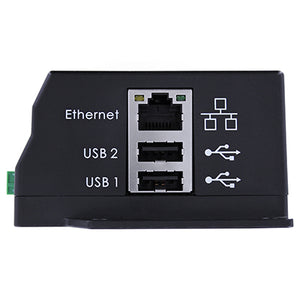

  • Ethernet：IEEE 802.3 – LAN
User Interface
  • Compatible Browsers：(Only up-to-date versions supported)
    。Google Chrome
    。Firefox
    。Safari
    。Internet Explorer
Enclosure
  • Material：FRABS
  • Dimensions：17 x 8 x 4.6cm (6.7 x 3.15 x 1.81in)
  • Weight：300g (0.66lbs)
  • Warranty Standard：2 years

  • Datasheet｜get
  • User's Manual｜get
