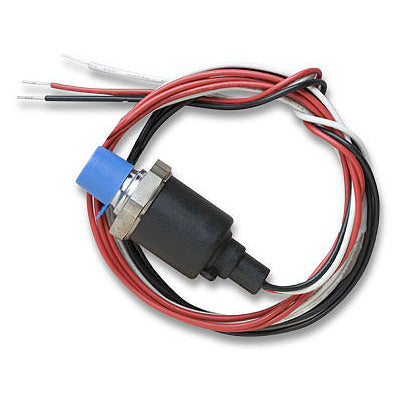

The 100-psig Ashcroft Gauge Pressure Sensor provides precision pressure measurements in compressed air systems, water, or other compatible gases and fluids with an accuracy of ±1% FS from -20° to 85°C (-4° to 185°F) and only ±1.5% FS -40° to -20°C and 85° to 125°C (-40° to –4°F and 185° to 257°F) . This sensor requires the FlexSmart Analog Module.
Requires analog port selection during U30 system configuration and use of a S-FS-CVIA when using the H22-001 data logger. When using a U12 data logger, this sensor requires an 0-5 Vdc analog input cable (CABLE-ADAP5) and external power provided by an AC adapter (AC-SENS-1).
- High-performance pressure transducer for industrial applications.
- 1/4″ NPT stainless-steel pressure connection.
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
The T-ASH-G2-100 sensor supports the following measurement：Gauge Pressure
- Measurement ranges：100, 200, 500 psig
- Compensated temp range：-40° to 125°C (-40° to 257°F)
。±1% FS from -20° to 85°C (-4° to 185°F)
。±1.5% FS -40° to -20°C and 85° to 125°C (-40° to –4°F and 185° to 257°F)"
- Non-linearity：less than ±0.1% of span typical
- Non-repeatability：less than ±0.03% of span typical
- Hysteresis：less than ±0.01 of span typical
- Stability：less than ±0.25% of span/year
- Durability：tested to 50 million cycles
- Overpressure：200% FS
- Response time：less than 1 msec
- Power：9-36 VDC, 5mA
- Operating temp range：-40° to 125°C (-40° to 257°F)
- Operating humidity range：0 to 100% RH, no effect
- Output signal to FlexSmart module：0-5 VDC, 3 wire
- Insulation breakdown voltage：100 VAC
- Insulation resistance：greater than 100 megohms at 100 VDC
- Construction：Shielded cable, 24 AWG, PVC jacket, 1-meter
- Pressure connection：1/4” NPT 304 stainless steel
- Sensor material：17-4PH stainless steel
- Housing material：20% glass reinforced nylon, fire retardant to UL94 V1
- CE compliance：Per EN 61326：1997 + A1：1998 + A2：2001, Annex A (Heavy Industrial)
- Dimensions：2.9 cm diameter x 6.4 cm long (1.15 in. diameter x 2.5 in. long)
- Outer cable diameter dimension：0.21 in. (5.4-mm)
- Weight：89.4g (3.15oz)
- Number of data channels：1
