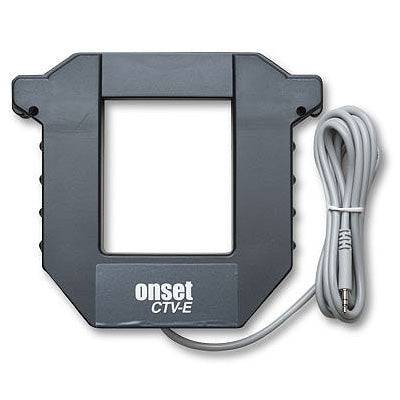

60 – 600 Amp split-core AC current Sensor – CTV-E

60 – 600 Amp split-core AC current Sensor – CTV-E

Regular price
$0.00
Sale price
$0.00
Unit price
per

◤OVERVIEW

A split-core AC current sensor responsive over the range of 60 to 600 amps AC for use with U12, UX120, and ZW data loggers with external input channels. With an input current of AC current, sine wave, single phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag.

The molded-plastic housing is rated for indoor use per UL508, with removable leg.

  • UL listed
  • Sensor power induced from line voltage
  • Self-gripping split-core design for fast installation


In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The CTV-E sensor supports the following measurement: AC Current

  • Range:60-600 Amps
  • Accuracy with H8:±5.0% of full scale
  • Accuracy with U12:±4.5% of full scale
  • Accuracy with UX120-006M:±2.1% of full scale
  • Response time (from 10% to 90% of amplitude):see table
  • Input current:AC current, sine wave, single phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag
  • Voltage rating:600 VAC
  • Construction and operating environment:Molded plastic housing for indoor use per UL508; pivoting leg (leg on CTV-D and CTV-E units is fully removable); UL listed.
  • Cable length:1.8m cable (6 foot)
  • Dimensions:see table

Part No. Range (Amps AC) Approximate Response Time (milliseconds) Dimensions
Window Outer Length Outer Width Height
CTV-A 2–20 440 2.8 cm x 2.3 cm 1.1 in. x 0.9 in. 7.4 cm
2.9 in
6.6 cm
2.6 in
2.5 cm
1.0 in
CTV-B 5–50 200 2.8 cm x 2.3 cm 1.1 in. x 0.9 in 7.4 cm
2.9 in
6.6 cm
2.6 in
2.5 cm
1.0 in
CTV-C 10–100 100 2.8 cm x 2.3 cm 1.1 in. x 0.9 in 7.4 cm
2.9 in
6.6 cm
2.6 in
2.5 cm
1.0 in
CTV-D 20–200 450 3.8 cm x 3.3 cm 1.5 in. x 1.3 in 9.9 cm
3.9 in
11.9 cm
4.7 in
2.8 cm
1.1 in
CTV-E 60–600 490 7.4 cm x 6.4 cm 2.9 in. x 2.5 in 13.5 cm
5.3 in
15.0 cm
5.9 in
2.8 cm
1.1 in

  • Datasheet|get
  • User's Manual|get
