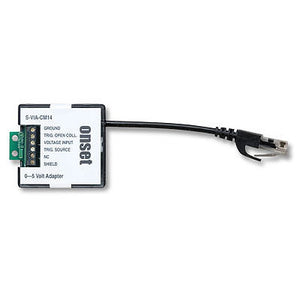

12-bit Voltage Input Adapter Sensor – S-VIA-CM14

12-bit Voltage Input Adapter Sensor – S-VIA-CM14

Regular price
$0.00
Sale price
$0.00
Unit price
per

◤OVERVIEW

The 12-bit Voltage Input Adapter interfaces with sensors providing 0-5 VDC signals to act as a smart sensor with compatible data loggers. This adapter features both a non-switched input and a battery-saving switched input that extends the life of external batteries. It also provides a trigger signal for controlling power to attached external sensors, while offering digital filtering which improves measurement accuracy with 32 readings/sample.

  • 12-bit resolution
  • Digital filtering improves measurement accuracy with 32 readings/sample—4-20 mA adapter has 60 Hz noise rejection
  • Measurement averaging over logging interval further enhances accuracy
  • Plug-in modular connector for easy interface with HOBO® Weather Station or HOBO® Micro Station data loggers
  • Screw terminal for connecting to sensors
  • Micro Station has room for two adapters and Weather Station has room for ten (adapters mount inside station enclosure)
  • Represents one data input channel


In what environment does this sensor operate?

This sensor operates in indoor and outdoor environments.

What measurements does this sensor support?

The S-VIA-CM14 sensor supports the following measurement:DC Voltage

  • Measurement range:0-5 V DC
  • Accuracy:±10mV ±0.3% of reading (over operating temperature range)
  • Resolution:±1.221 millivolts
  • Input impedance:1 Megohms
  • Sensor trigger open collector:Maximum sink current:115 mA; 30V maximum
  • Sensor trigger source:Voltage:2.5 V ±2.4%; maximum current:1 mA
Trigger Timing
  • Warm-up time:10.3 ms ±3% (fixed)
  • Measurement time:2.4 ms ±3%
  • Cable length:14 cm (5.5 inch)
  • Ground connection:Same for adapters and PC interface
  • CE – The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
