◤OVERVIEW

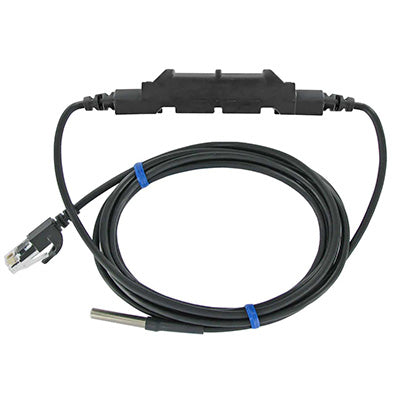

The 12-bit Temperature Smart Sensor provides < ± 0.2° C total accuracy (< ±0.36° F) and resolution of < ± 0.03° C (< ±0.054° F) over the range of from 0° to 50° C (32° to 122° F). The full measurement range is -40° to 100° C (-40° to 212° F). A selectable measurement-averaging feature further improves accuracy. Reliable service is assured by a stainless steel sensor tip and robust cable rated for immersion in water up to 50° C for up to one year. This model has a cable length of 6m.
Also available in a wireless model for use with the HOBOnet Field Monitoring System.
- Measurement range of -40° to 100°C (-40° to 212°F)
- Stainless steel sensor tip
- Sensor and cable rated for immersion in water or soil up to 50°C for up to 1 year
In what environment does this sensor operate?
This sensor operates in indoor, outdoor and underwater environments.
What measurements does this sensor support?
The S-TMB-M006 sensor supports the following measurements：Temperature and Water Temperature
- Measurement range：-40° to 100°C (-40° to 212°F) sensor tip*
- Accuracy：< ±0.2°C from 0° to 50°C (< ±0.36°F from 32° to 122°F)
- Resolution：< ±0.03°C from 0° to 50°C (< ±0.054°F from 32° to 122°F)
- Drift：< ±0.1°C (0.18°F) per year
- "Response time (to 90% of change): < 3 minutes typical to 90% in 1 m/sec air flow < 30 seconds typical to 90% in stirred water"
- Measurement averaging option：Yes
- Environmental rating：Waterproof sensor tip and cable rated for 1-year immersion in water up to 50°C
- Housing：Stainless steel sensor tip
- Dimensions：5.1 x 33 mm (0.2 x 1.3 inches)
- Approximate weight：100 g (1 oz), 310 g (4 oz), 880 g (12 oz) — varies with cable length
- Cable length：6.0 m (19.7 ft)
- Number of data channels：1
- Length of Smart Sensor network cable：0.5 m (1.6 ft)
- * Sensor tip and cable immersion in fresh water up to 50°C (122°F) for one year. Cable electronics are rated for up to 75°C (167°F). Radiation Shield strongly recommended for use in sunlight (part # RS3)
-
– The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
